Threaded Fittings
We offer a comprehensive range of Threaded Fittings designed for reliable and leak-proof connections in low to moderate pressure piping systems. These fittings are manufactured using high-quality materials to ensure strength, longevity, and corrosion resistance across diverse industrial environments. Our offerings include Stainless Steel (ASTM A182 F304, 304L, 304H, 316, 316L, 317, 317L, 321, 310, 347, 904L),
Carbon Steel (ASTM A105, A350 LF2, A694 F42 to F70), Alloy Steel (ASTM A182 F1, F5, F9, F11, F22, F91),
Duplex & Super Duplex (UNS S31803, S32750, S32760), and High Nickel Alloys such as
Monel (400, K500), Inconel (600, 625, 718), Incoloy (800, 825, Alloy 20), and
Hastelloy (C22, C276).
Our Threaded Pipe Fittings are available in sizes ranging from 1/8" to 4" NPS and comply with standards like
ASME B16.11, BS 3799, and other international norms. These fittings are available in both
Class 2000, 3000, and 6000 pressure ratings to meet specific service conditions.
The product range includes Threaded Elbows (90°/45°), Threaded Tees (Equal/Reducing),
Threaded Couplings (Full/Half/Reducing), Unions, Caps, Plugs,
Bushings, Reducers, Crosses, Nipples, and Adapters.
Our Threaded Fittings are widely used in Oil & Gas, Petrochemical,
Pharmaceutical, Power Plants, Water Treatment, and Fire Protection systems
owing to their quick installation, reusability, leak resistance, and
low maintenance features.
| Specification | Details |
|---|---|
| Material Grades |
Stainless Steel: ASTM A182 F304, 304L, 304H, 316, 316L, 317, 317L, 321, 310, 347, 904L Duplex & Super Duplex: UNS S31803, S32750, S32760 Carbon Steel: ASTM A105, A350 LF2, A694 F42 to F70 Alloy Steel: ASTM A182 F1, F5, F9, F11, F22, F91 Monel: ASTM B564 Monel 400, K500 Inconel: ASTM B564 Alloy 600, 625, 718 Incoloy: ASTM B564 Alloy 800, 825, Alloy 20 Hastelloy: ASTM B564 C22, C276 Copper Alloys: Brass, Pure Copper, Cupro Nickel 90/10 (C70600), Cupro Nickel 70/30 (C71500) |
| Size Range | 1/8" NB to 4" NB |
| Pressure Class | Class 2000 / 3000 / 6000 |
| Thread Type | NPT (National Pipe Thread), BSP (British Standard Pipe), BSPT, ISO |
| Types |
Elbow (90°, 45°), Tee (Equal & Reducing), Coupling (Full, Half, Reducing), Union, Cap, Plug, Hex Nipple, Hex Bushing, Reducer, Cross, Adapter (Male/Female) |
| Standard | ASME B16.11 / BS 3799 / MSS SP-83 |
| Applications |
Oil & Gas, Petrochemical, Fire Protection, Chemical Processing, Power Generation, Water Treatment, Marine, HVAC Systems, Plumbing Installations |
Types of Threaded Fittings

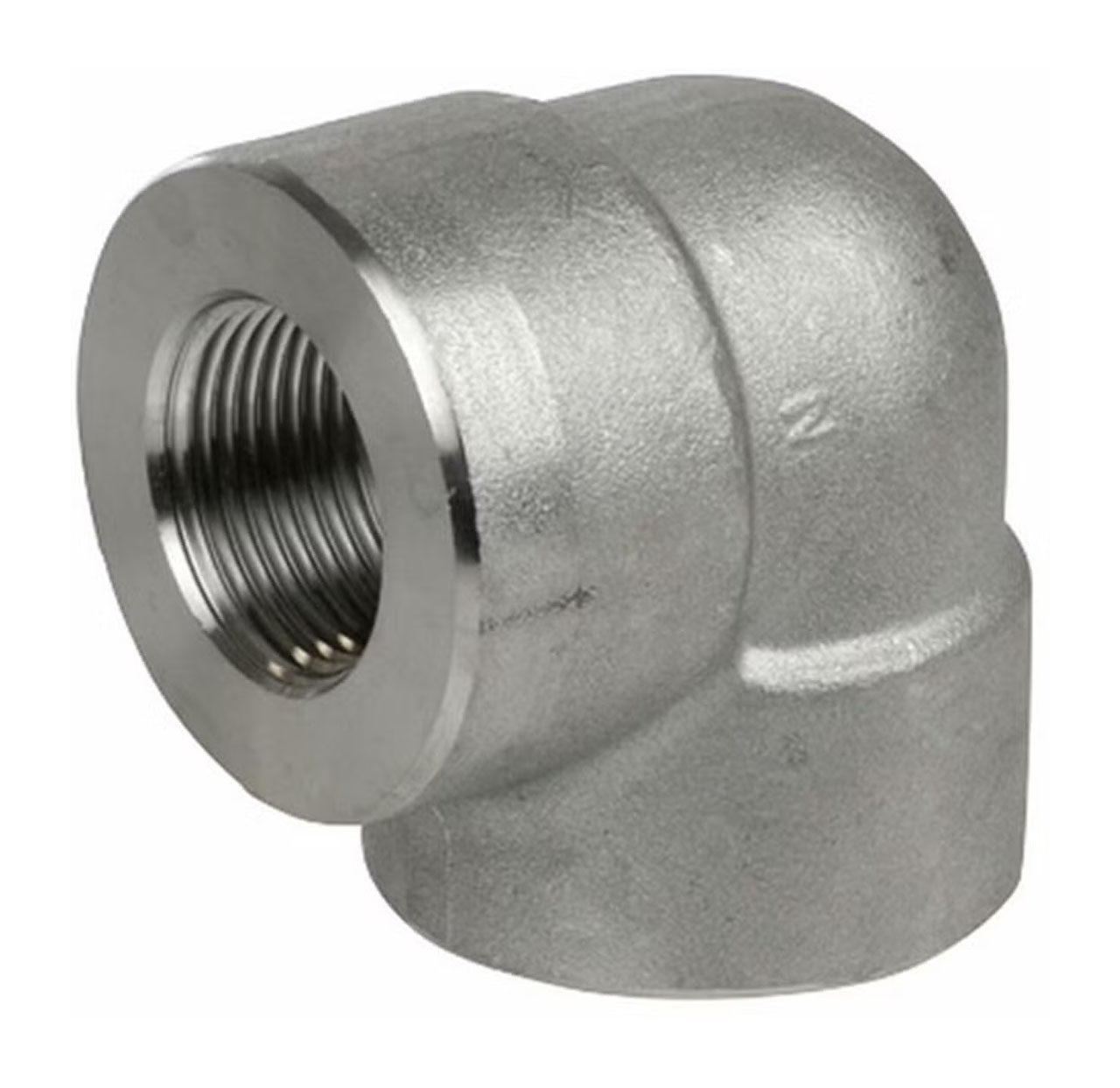

Threaded Elbow (90°, 45°, Street Elbow)
A Threaded Elbow is a type of forged pipe fitting designed to change the direction of flow
in a piping system using a threaded connection. These elbows are typically available in
90-degree and 45-degree angles, and are ideal for small diameter pipelines
under low to medium pressure.
Street Elbows are a variation with male and female threaded ends, allowing for more compact
installations without additional fittings. Threaded elbows provide a secure and leak-proof joint and are
widely used in plumbing, fire protection, oil & gas, chemical processing, and HVAC systems.

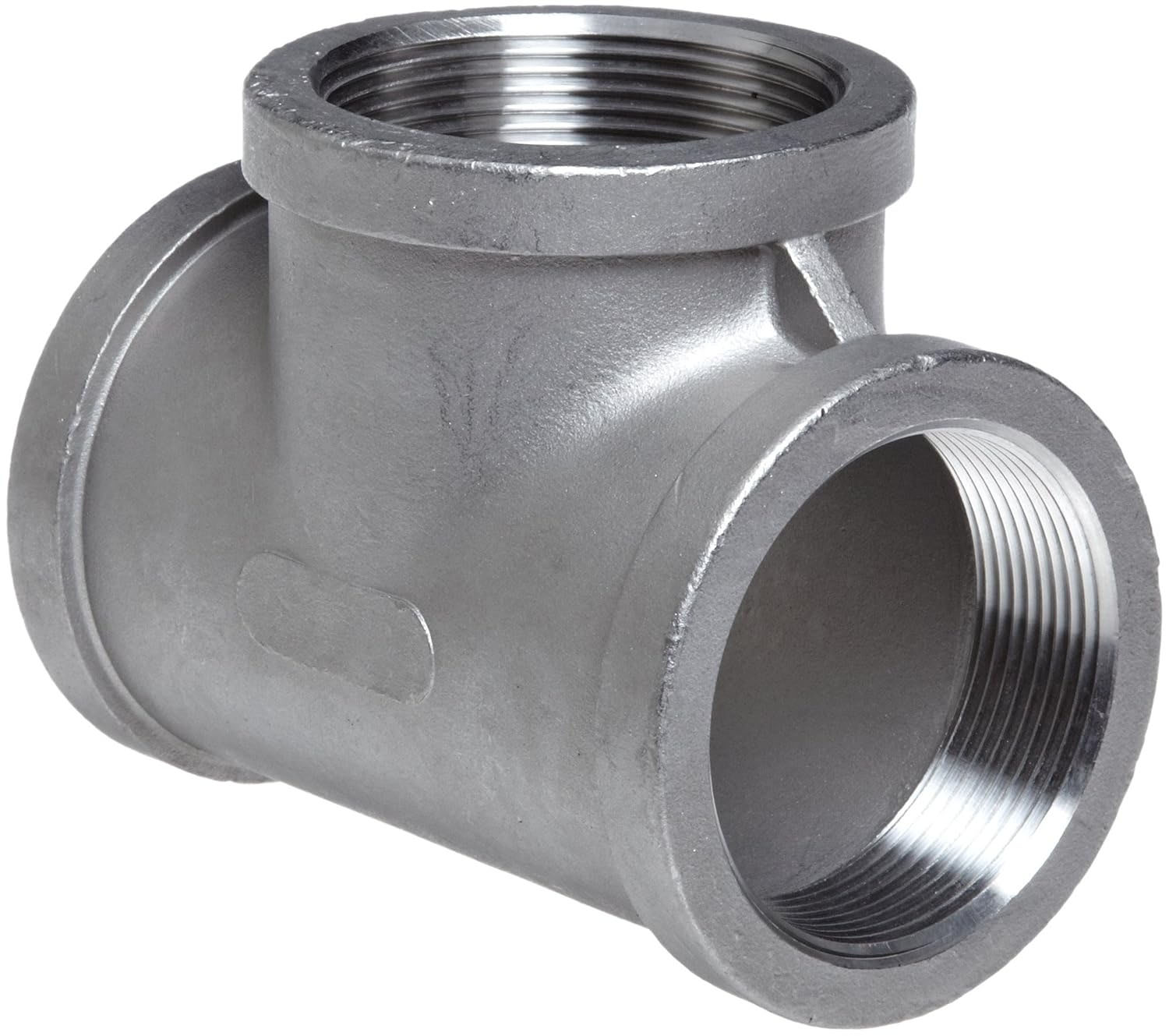

Threaded Tee (Equal & Reducing)
A Threaded Tee is a T-shaped fitting used to join three sections of pipe or tube with
threaded connections. It allows for the division or combination of flow in piping systems. Threaded Tees are
available in two main types: Equal Tee (all three ends are the same size) and
Reducing Tee (one outlet is smaller than the others).
These fittings are widely used in low-pressure, non-critical piping systems where welding
is not suitable. They are ideal for applications in oil & gas, fire sprinkler systems, plumbing,
petrochemical plants, and general industrial services.

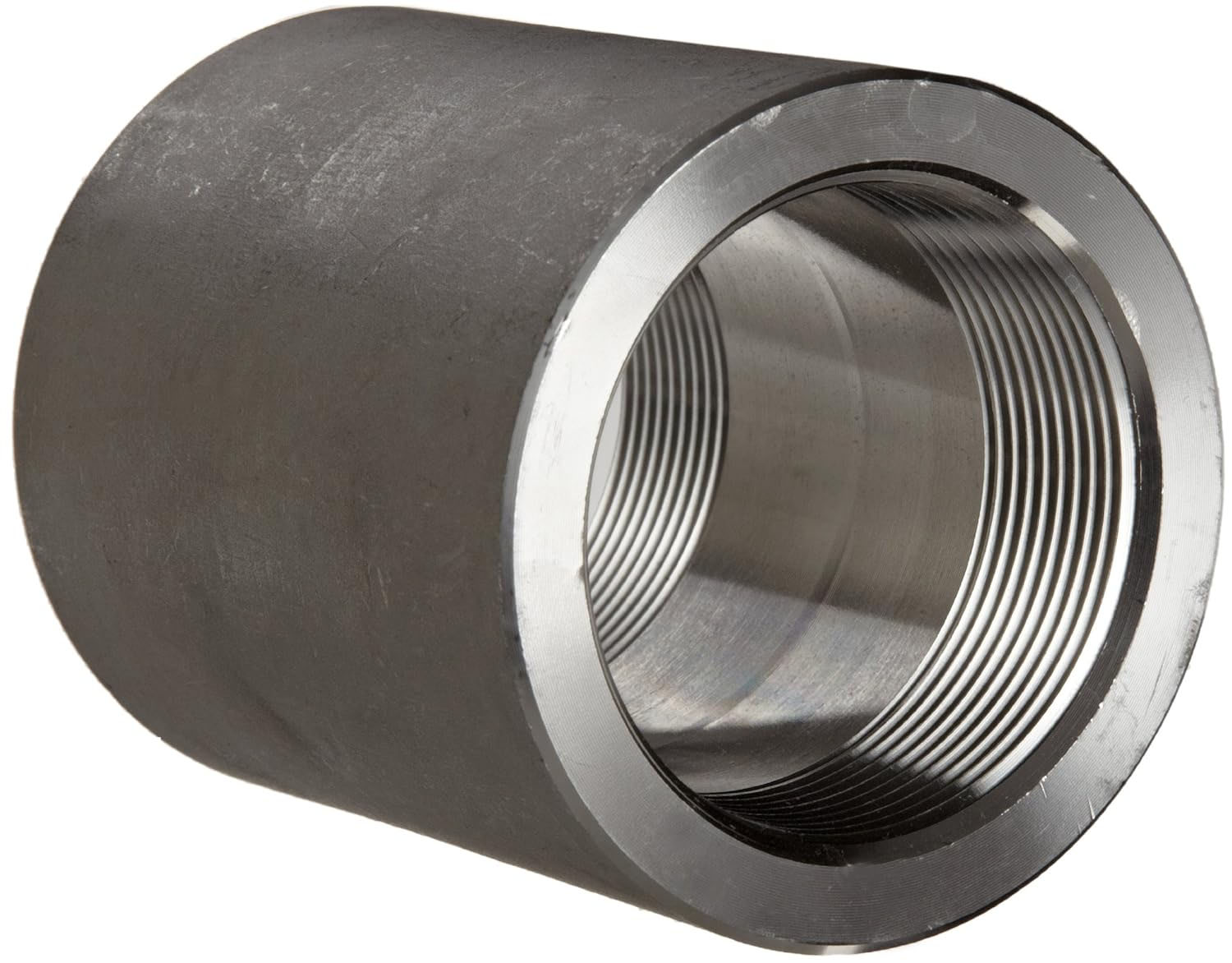

Threaded Coupling (Full, Half & Reducing)
A Threaded Coupling is a forged fitting used to join two lengths of threaded pipe in a
straight line. These couplings come in various types including Full Coupling (threads on
both ends), Half Coupling (threaded on one end only), and Reducing
Coupling (joins pipes of different sizes).
Threaded couplings provide a tight, secure, and leak-free joint without welding, making them ideal for quick
assembly and disassembly. They are commonly used in plumbing, oil & gas, chemical processing, HVAC,
and fire protection systems where moderate pressure and corrosion resistance are required.

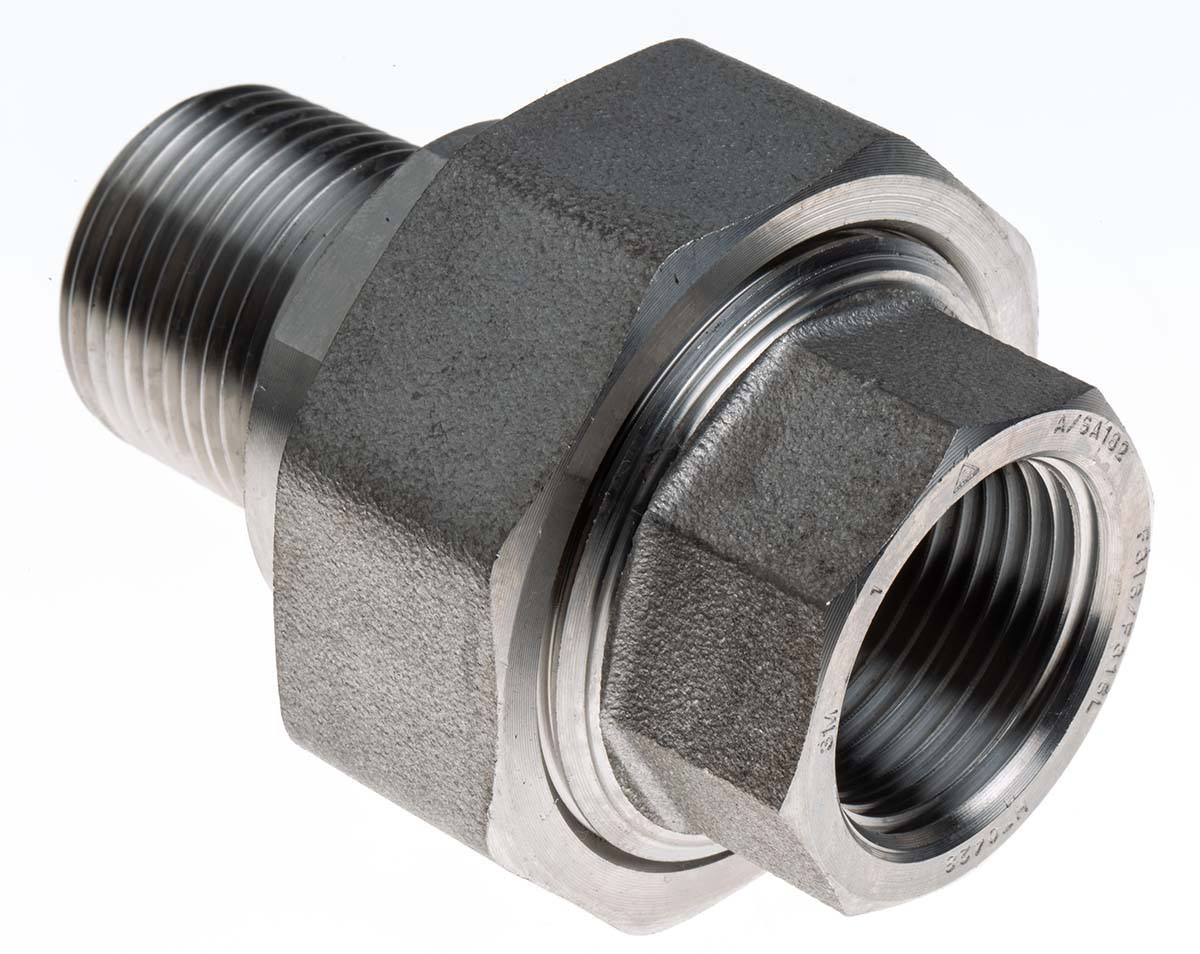

Threaded Union
A Threaded Union is a type of forged pipe fitting that allows for easy connection and
disconnection of piping systems without the need for cutting or welding. It consists of three components: a
male end, a female end, and a central nut that joins and seals the connection securely.
Threaded unions are ideal for frequent maintenance, replacement, or repair operations in
piping systems. They are widely used in oil & gas, chemical processing, power plants, water
treatment, and HVAC systems for their ease of installation, reusability, and strong leak-proof
performance under moderate pressure.

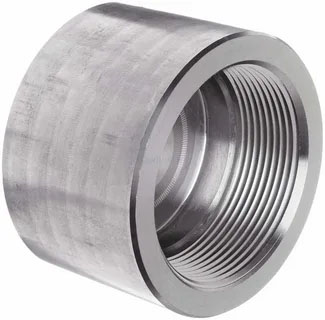

Threaded Cap
A Threaded Cap is a forged fitting used to seal the end of a pipe or fitting with a female
thread. It prevents the entry of debris or unwanted substances and ensures a secure closure for
pressure-containing piping systems. Threaded caps are easy to install and remove, making them a convenient
solution for temporary or permanent closures.
These caps are available in a range of materials and pressure classes to suit various applications. Commonly
used in plumbing, oil & gas, water supply, fire protection, and chemical processing
industries, Threaded Caps are known for their tight seal, corrosion resistance, and
mechanical strength.

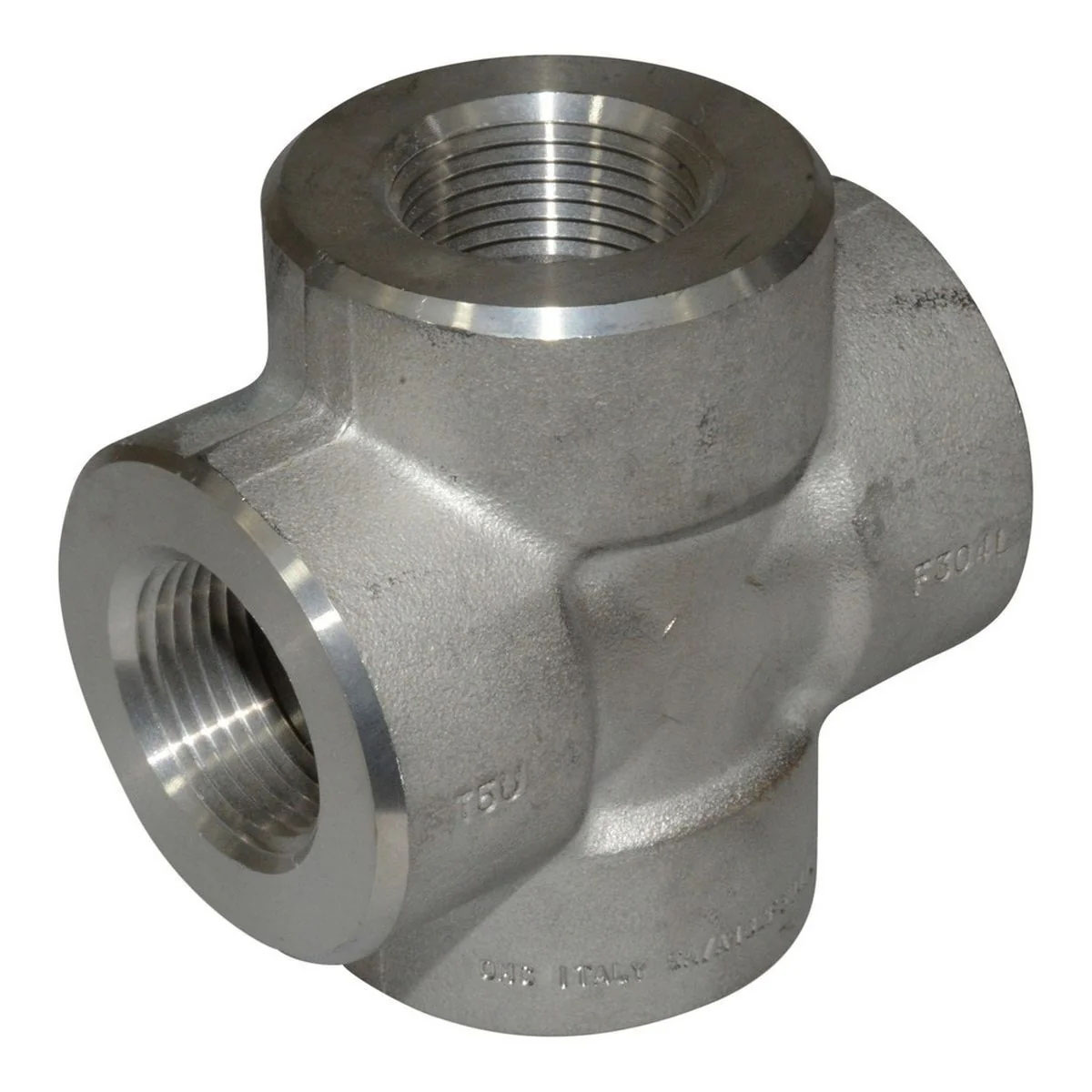

Threaded Cross
A Threaded Cross, also known as a four-way fitting, is used to connect four pipes together
at right angles. It has one inlet and three outlets (or vice versa), allowing for the distribution or
collection of flow in multiple directions. Each end is internally threaded, making it easy to assemble with
male-threaded pipes.
Threaded crosses are ideal for use in low-pressure applications where compact and modular
connections are required. They are commonly used in fire protection systems, water supply networks,
oil & gas distribution, plumbing systems, and industrial fluid handling. Manufactured in a
variety of materials and pressure ratings, they ensure durability, corrosion resistance, and ease of
maintenance.

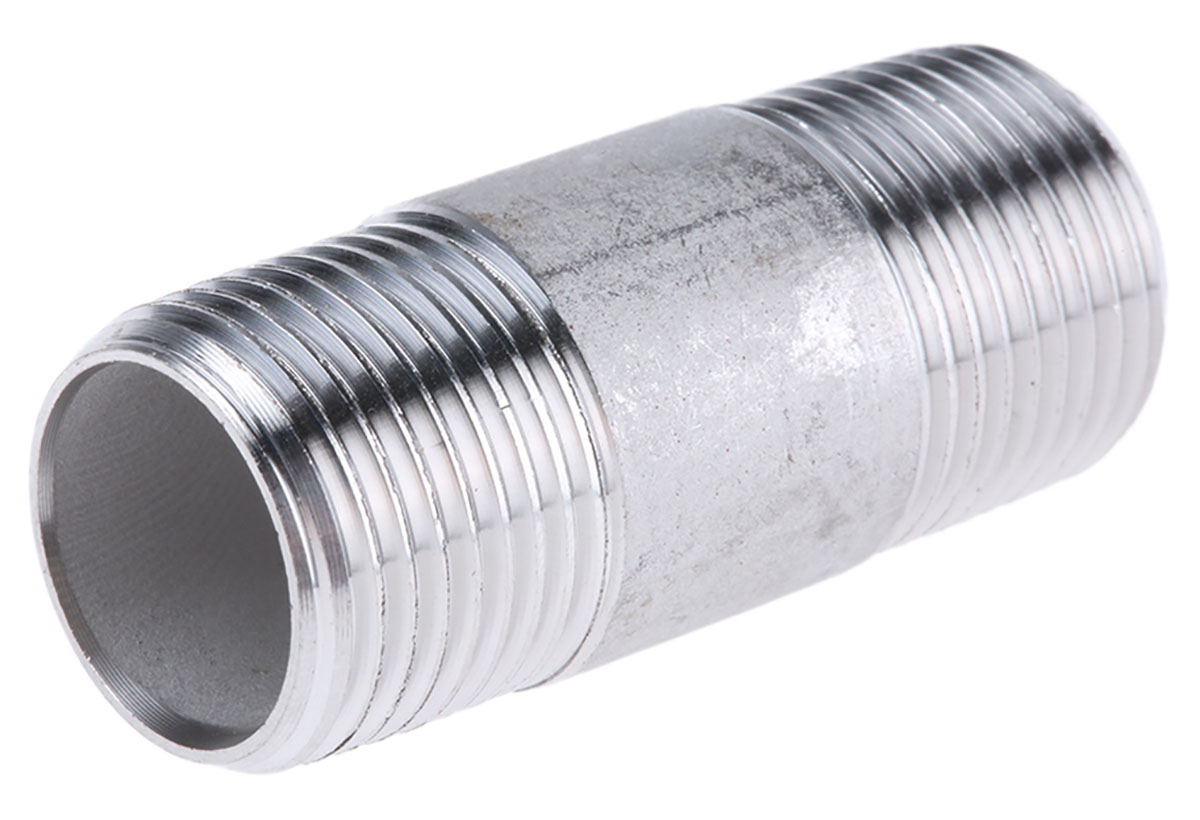

Threaded Nipple
A Threaded Nipple is a short length of pipe with male threads on both ends, used to connect
two female-threaded fittings or pipes in a straight run. It is available in various lengths, diameters, and
pressure classes, and is an essential component in compact piping setups.
Threaded Nipples are manufactured from a wide range of materials including stainless steel, carbon steel,
alloy steel, and high nickel alloys to ensure compatibility with various media and environments. They are
widely used in plumbing, water supply, oil & gas, chemical processing, and industrial fluid
systems for their easy installation, pressure handling, and corrosion
resistance.

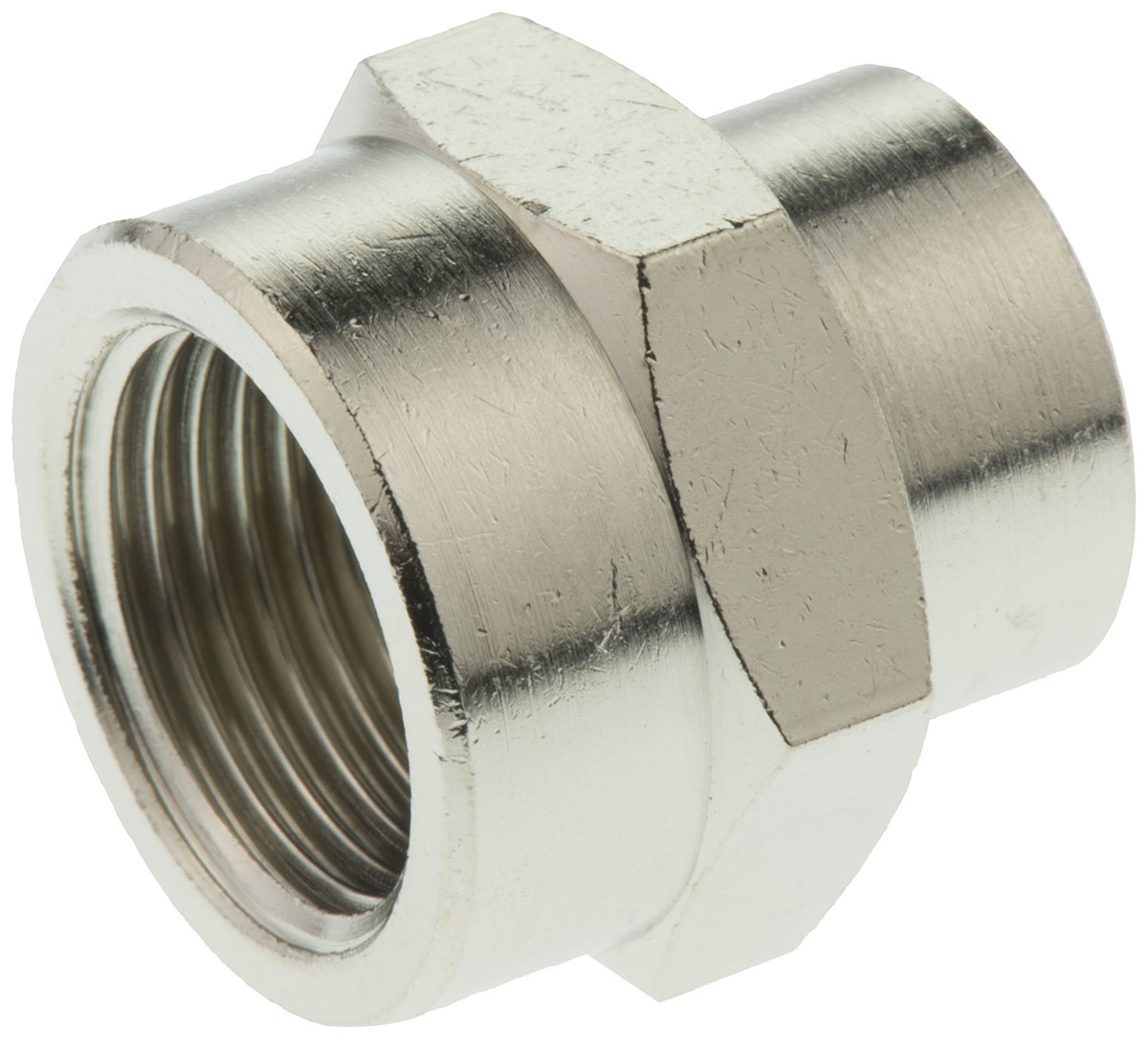

Threaded Adapter (Male & Female)
A Threaded Adapter is a forged fitting used to transition between different types of pipe
connections—typically from threaded to welded, or from male to female threads. It ensures a secure and
leak-proof connection between dissimilar piping components and helps in adapting system configurations.
Threaded Adapters are available in both Male and Female versions and are manufactured in a
wide variety of materials to meet diverse industry standards. These adapters are commonly used in
oil & gas, petrochemical, HVAC, water supply, and fire protection systems for their
versatility, reusability, and ease of installation.
